Hostile Vehicle Mitigation (HVM) PAS68 On Ground Fence
Hostile Vehicle Mitigation (HVM) PAS68 On Ground Fence

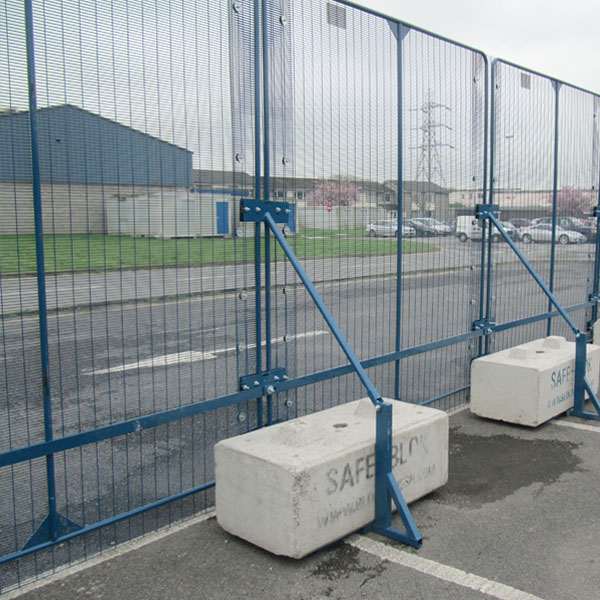

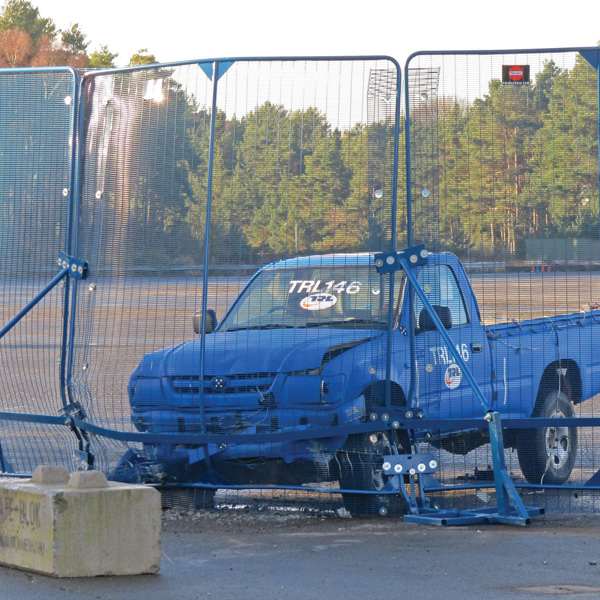

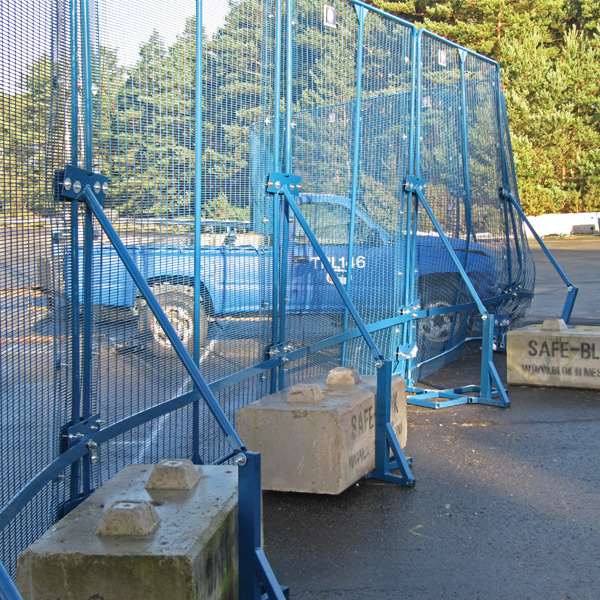

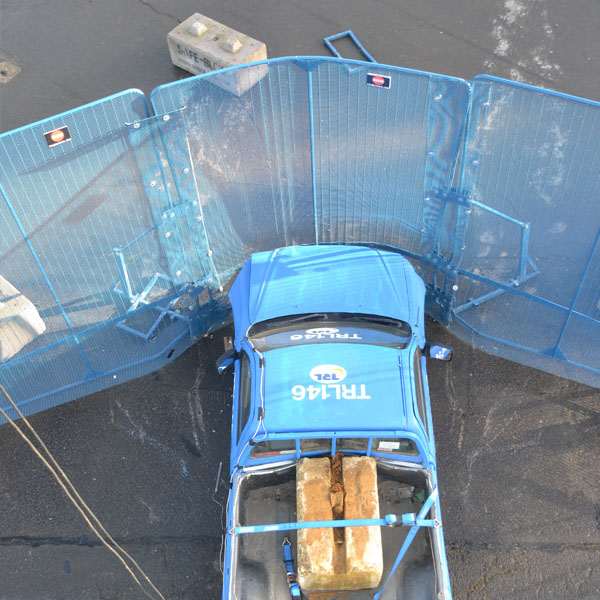

The POLMIL® PAS 68 rated on ground system is similar in appearance and flexibility to the BASE level system, but uses heavier duty support structure to resist high impact force for Hostile Vehicle Mitigation, plus a continuous solid steel resistant strap to progressively absorb energy and prevent an attack vehicle from penetrating the fence, designed and installed to withstand a variety of vehicle borne attack.
POLMIL® CPNI assessed PAS68 Rated Fence systems are available in heights of 2.4m or 3m as listed in the CPNI Catalogue of Impact-Tested Vehicle Security Barriers. The 3m high system has also undergone independent ‘Special Forces Attack’ and ‘Public Order’ testing with excellent results.
| Features | |||
|---|---|---|---|
| On ground system avoids digging risks | Modular components enable rapid installation | 358 prison weldmesh prevents ‘pass through’ | POLMIL® accepts various ballast options to suit site |
| POLMIL® works on hard uneven urban surfaces | Fully framed panel reinforced for repeated use | Panels overlap to accommodate severe inclines | Adjustable brace keeps panel vertical on slopes |
| Panels overlap to enable precise fenceline changes | Panel can be cantilevered to prevent ‘climb around’ | Finishing flush to ground prevents ‘pass under’ | Lifting pin enables block placing from any angle |
| Cover mesh protects brace bolts & panel gaps | Optional barbed/razor wire supports | Compatible with microphonic cable perimeter intruder detection systems (PIDS) | Heavy duty brace secured with front clamp plate |
| Heavy duty base increases overall strength | Additional clamp plates reinforce panel joins | Steel ‘PAS strap’ prevents vehicle breaking through | POLMIL® works on soft undulating rural surfaces |
| Anti-lift bracket assists panel to base connection | Lead-free powder coated finish (any standard RAL) |
Additional information
- Panel Dimensions: Height 2.4m or 3m x Width 2.5m
- Mesh Pattern: 358 Prison weldmesh
- Finish: Standard pre-galvanised and powder coated blue (RAL5001) after manufacture. Other colours to order.
- Option, hot dipped galvanised after manufacture for long term deployments in harsh environments.
- PAS68 Classification: V/2500(N1G)/48/90:2.0/11.5.
